Description
Note: This item comes with a 15A plug and requires a current converter adaptor for use with 10A sockets.
Product Features
Outstanding current range
Super stable arc force and post flow control
Compact and lightweight
IGBT inverter technology
Maximum 1.0mm wire spool
Super stable DC inverter technology
Current stabilisation and auto increase
Industry-standard DIN sockets
Outstanding 30,000 MTPF hours cooling
Overheating, over current, and over/under voltage protection
Works with a range of rod sizes
SAA, EMC, CE and C-Tick certified
Dimensions & Specs
Dimensions | Width | Height | Depth |
---|---|---|---|
Product | 18.50cm | 34cm | 42cm |
Package | 32.50cm | 41cm | 52cm |
Specifications
Power Voltage: Single Phase 220V ±15%, 50HzPower Plug: 15A AU Standard
Input capacity: 7.5KVa
Output current range: 20A - 220A
Duty Cycle: 35% @ 220A, 60% @ 170A
Efficiency: 85%
Insulation class: F
Shell protection grade: IP21
TIG and MMA connections: Quick-connect brass fittings
MIG torch connection: Hardwired
Max rated input: 15Amp (Require 15Amp Socket)

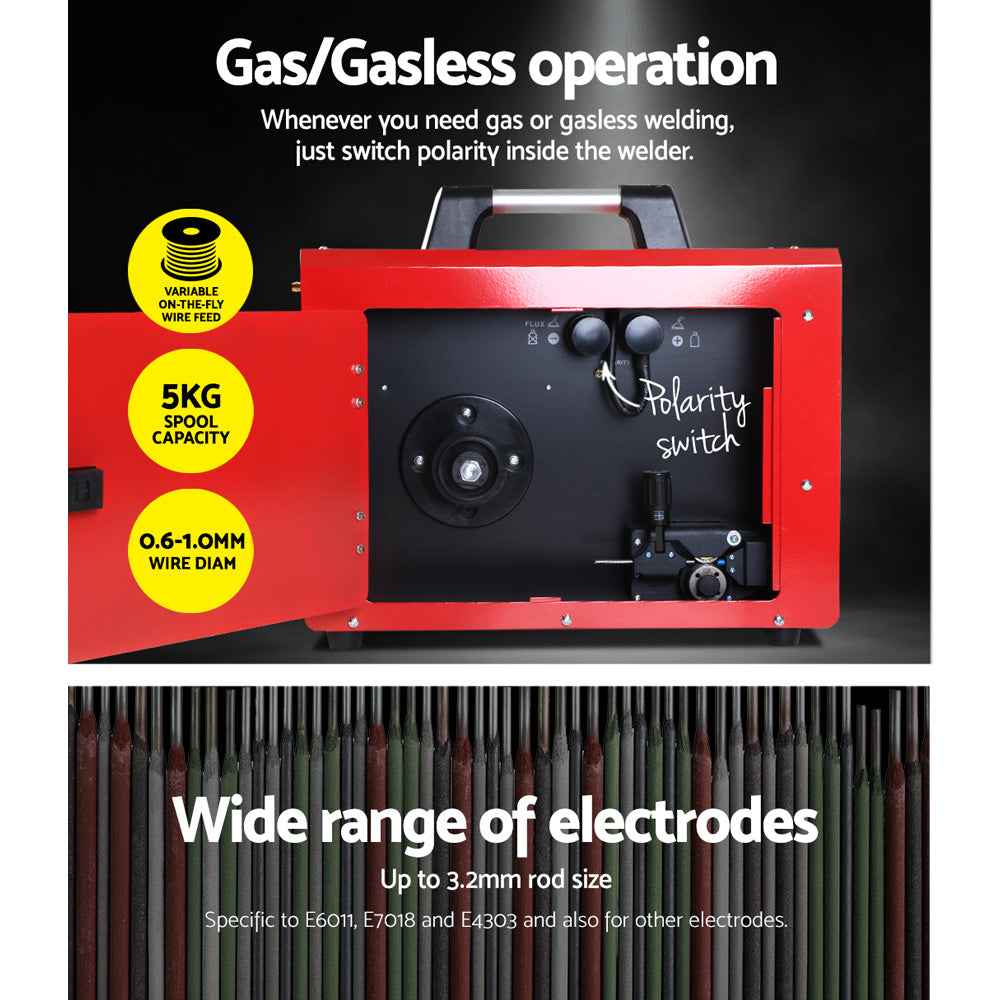

Wire spool diameter: 0.8mm- 1.0mm
Spool capacity: Takes Up to 5Kgs Spools from 0.8 - 1.0mm
Welding electrodes: Up to 4.0mm
MIG touch length: 3m
MMA electrode cable length: 1.8m
Earth clamp cable length: 1.2m
TIG torch cable length: 4m
Power cord length: 1.8m
Generator recommended: 8kVA
Dimensions: 42cm x 18.5cm x 34cm
Product weight: 11kg

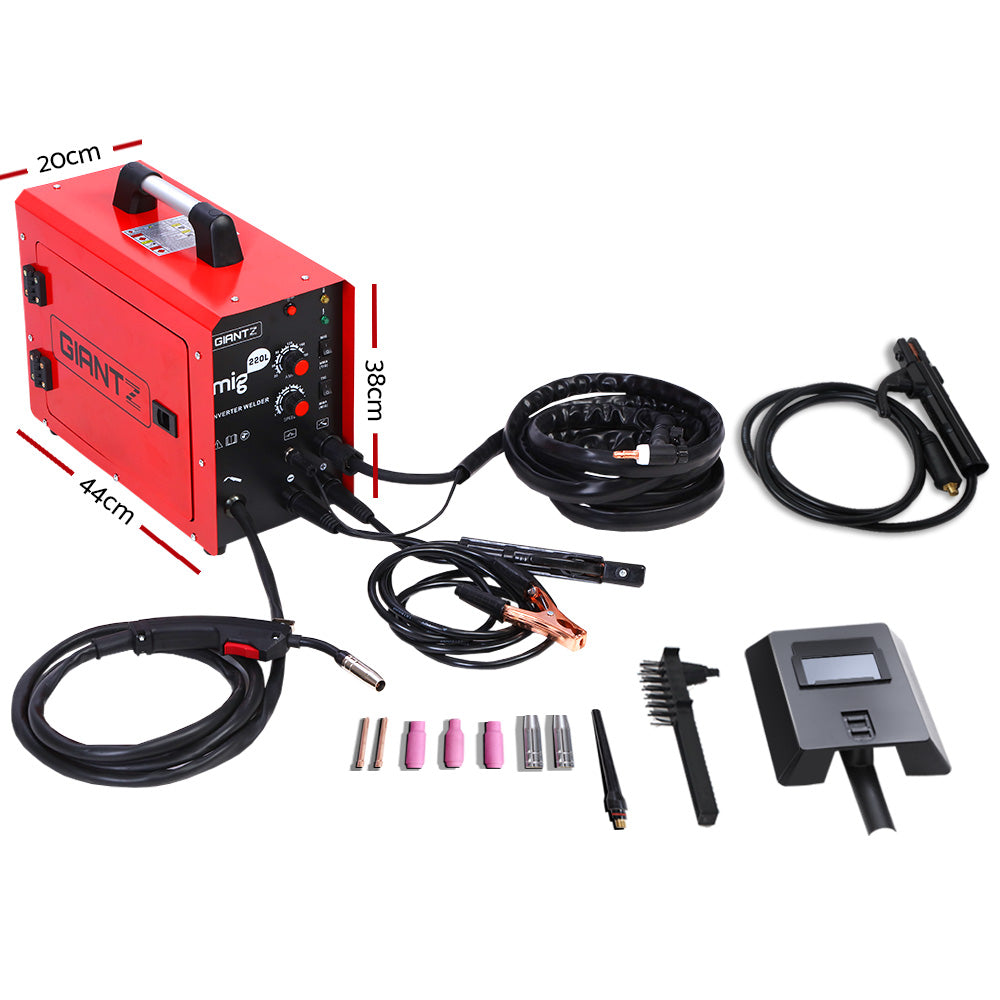

What’s Included
MIG torch 1x
TIG torch Lead 1x
Electrode Holder Lead 1x
Earth Clamp Lead 1x
Welding Mask
Packing Bag for Touch Lead 1x
Collet 1x
Gas Nozzle 1x
Stubby Ceramic Nozzle 1x
Long Back Cap 1x
Wire Brush 1x
User Manual 1x
