Description
Behind the unit, there are HDMI, VGA, and USB outputs for versatile connectivity, and the DVR is also compatible with cloud technology. Not least, all your recorded data is safely protected when a power outage occurs. Included with your purchase are all the accessories for a quick setup with minimum hassle.
Note: This product requires a Hard Drive (not included) to record the video
Product Features
Supports AHD, TVI, CVI, CVBS, and IP camera
Support P2P technology
Remote access
View on phone or computer
Customisable motion detection
Instant E-mail alarm
HDMI and VGA outputs
Support USB backup and storage
Data protection on power outage
Support 4-channel simultaneous live viewing via smartphone
Support Capture and Record in smartphone
Support Cloud System For Remote Access/Support HDMI Output
Bonus USB mouse
Dimensions & Specs
Dimensions | Width | Height | Depth |
---|---|---|---|
Product | 21cm | 4.50cm | 25.50cm |
Package | 27.50cm | 7.50cm | 35cm |
Specifications
VideoCodec: H. 264
Monitor quality: VGA,HDMI: HD
Preview ability: 41080N
Encode ability: 41080N@12fps
Decode ability: 41080N@12fps
Multi-mode input: analog: 41080N; 4AHD-M; 4AHD-L
hybrid: 41080N(analog)+4960P(network)
Network only: 4720P; 41080P; 8720P; 81080P; 11080P
Motion detection:
Each screen can be set to 192 (16 12) detection areas;
multi-level sensitivity can be set (Limited local channel)
External Interface
Video input: 4ch BNC
Video output: 1ch VGA, 1ch HDMI
Loop vout: N/A
Audio I/O: 0/0
Alarm I/O: 0/0
Network interface: RJ45 10M/100M self-adaption
PTZ control: 1RS485, Support kinds of PTZ protocols
USB: 2USB 2. 0 ports
HDD: 1SATA ports (Max 6TB/per)
General
Power supply: 12V/2A
Record and playback
Record mode: manual>alarm>motion detection>timing
Local playback: 8ch (local input mode)
Search mode: Search by time, calendar, event, channel
Storage and backup
Video storage: HDD, network
Backup mode: Network, USB hard disk, USB burner, SATA burner

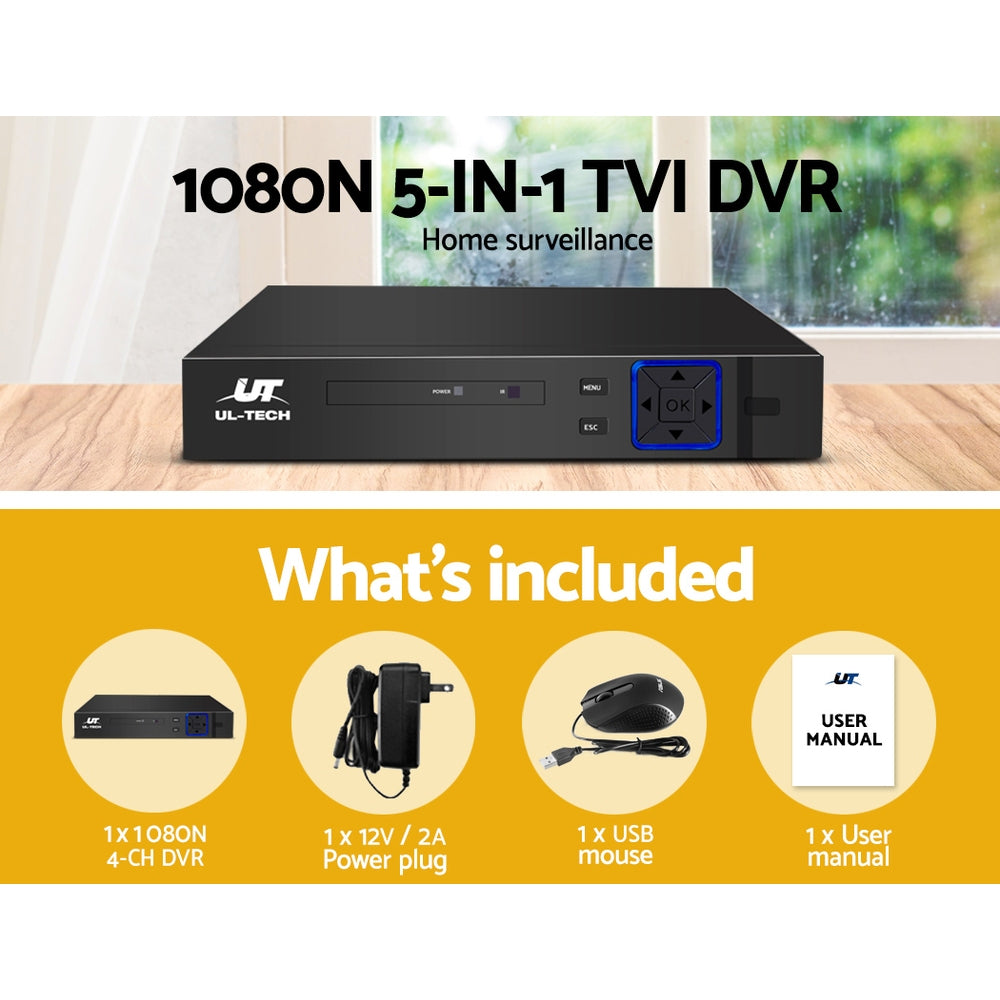

What’s Included
1x12V/2A power plug
1x USB mouse
1x Network cable
1x Mounting screws pack
