Description
NOTE: This item comes with a 15A plug and requires a current converter adaptor for use with 10A sockets.
Product Features
HF contact start technology
7kg weight
Outstanding duty cycle
Super stable arc force
IGBT inverter technology
Super stable DC inverter technology
Current stabilisation and auto increase
Industry-standard DIN sockets
Adjustable output current range 30A to 140A
Outstanding 30,000 MTPF hours cooling
Overheating, over current, and over/under voltage protection
Works with a range of rod sizes
SAA, EMC, CE and C-Tick certified
Dimensions & Specs
Dimensions | Width | Height | Depth |
---|---|---|---|
Product | 16.50cm | 27cm | 42cm |
Package | 30cm | 33cm | 49cm |
Specifications
Power Voltage: Single Phase 220-240V ±15%, 50HzPower Plug: 15A AU Standard
TIG (Amps/Duty Cycle): 123A @ 100%, 140A @ 60%
MMA (Amps/Duty Cycle): 123A @ 100%, 140A @60%
CUT: 20-40 Amps @ 60% Duty Cycle
Input Air Pressure: 0.4Mpa
No load power: 40W
Efficiency: 85%
Insulation Class: F
Cut Thickness: 1-6mm
Shell Protection Grade: IP21
Pilot Arc Mode: HF
Welding Electrodes: Up to 4.0mm
Plasma Torch Length: 4m
MMA Electrode Cable Length: 1.8m
Earth Clamp Cable Length: 1.2m
TIG torch Cable Length: 4m
Power Cord Length: 1.8m
Generator Recommended: 8kVA
Dimensions: 42cm x 16.5cm x 27cm
Product Weight: 7kg

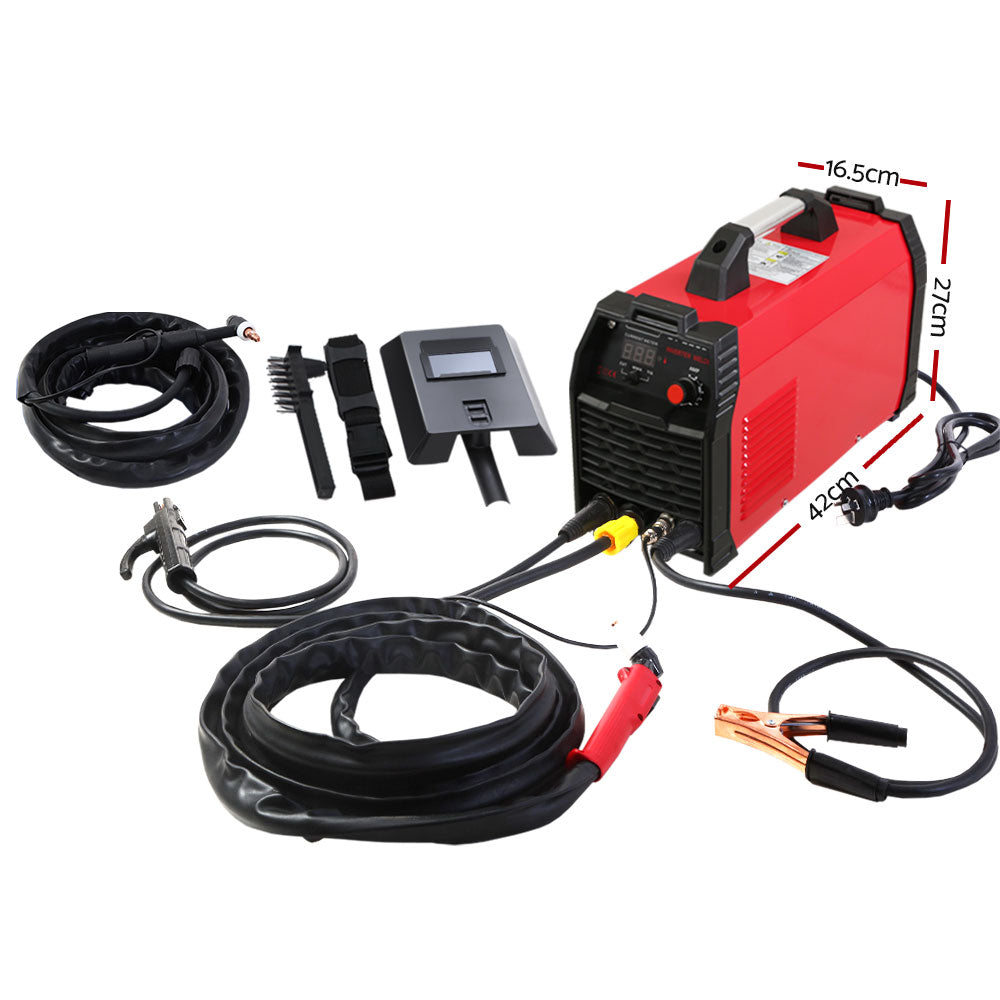

What’s Included
1x Plasma torch with accessories
1x TIG torch Lead
1x Electrode Holder Lead
1x Earth Clamp Lead
1x Welding Mask
1x Packing Bag for Touch Lead
1x Regulator
1x Wire Brush
1x User Manual
